Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: USENDA
  • Model Number: UD-PJ46CZB02
  • Type: TFT
  • Application: Indoor
  • Panel Size: 46inch
  • Max Resolution: 1920x1080
  • Viewing Angle: H/V 178
  • Pixel Pitch: 0.53025*0.53025
  • Color: 16.7M (8 bit)
  • Contrast Ratio: 3000:1
  • Brightness: 500cd/㎡
  • Response Time: <=6ms
  • Input Voltage: AC110-220V, 100~240V
  • Product type:: outdoor advertising lcd video wall
  • Bezel Width:: 5.3mm
  • Application:: KTV,Dancing mall,Exhibition,Airport,Finacial,Metro.etc
  • Certificates:: CE,3C,FCC,SASO
  • Panel brand:: Samsung / LG .can be customize
  • Tube Chip Color:: Full color
  • Signal interface:: RS232, HDMI,DVI,VGA, AV,RJ45,IR
  • Life:: >60,000(hrs)
  • Product name: 3x3 LCD DID video wall walls 46 inch seamless tv wall

Packaging & Delivery

Packaging Details Packing: 1pcs pack in 1 carton, 4pcs in a big carton with manual brace mount and power.

With Samsung led hd display 3x3 LCD DID video wall walls 46 inch seamless tv wall





46" Specifications

Model No.

PJ460CZB02

Panel Size

46'' by Samsung DID LCD Screen(narrow bezel 5.3mm/3.5mm)

Max resolution

1920X1080/3840X2160

Screen Size inch/cm

46/102.4x57.8

Active Screen Area (W x H) cm

101.8x57.2

Panel Technology

S-PVA TFT with direct white LED backlights

Aspect Ratio

 16:9

Color

8Bit,16.7M

Visual Angle (H/V)

178/178

Response Time

<=6ms

Life(hrs)

>60,000(hrs)

Input and output

DVI

1

HDMI

1

D15-RGB Input(VGA)

1

RJ45

2

DP

2(2xDP)

Composit video input

2(2xBNC)

Split screen

Support picture in picture(PIP/POP/PAP)

Power

Power supply

AC100V~240V

Maximum power consumption

230W

Standby comsuption

<=3W

Temperature

Working temperature

0c~50c

Working Humidity

20%~80%

Dimension

121.5*68.6cm

Weight

40kg






Video Wall Controller(Built-in each Screen)

Model No.

UD-PJ

Input

CVBS

1*BNC port, support PAL/NTSC all formats

DVI

1*DVI-I port, support SVGA/XGA/WUXGA

VGA

1*D15 port, support SVGA/XGA/WXGA

HDMI

5*BNC ports, support SVGA/XGA/WUXGA

Output

LVDS

Support signal or double LVDS output, and WUXGA (1920*1080) display

CVBS

support PAL/NTSC all formats

DVI

1*DVI-I port, support SVGA/XGA/WUXGA



Real products show

Unit screen details

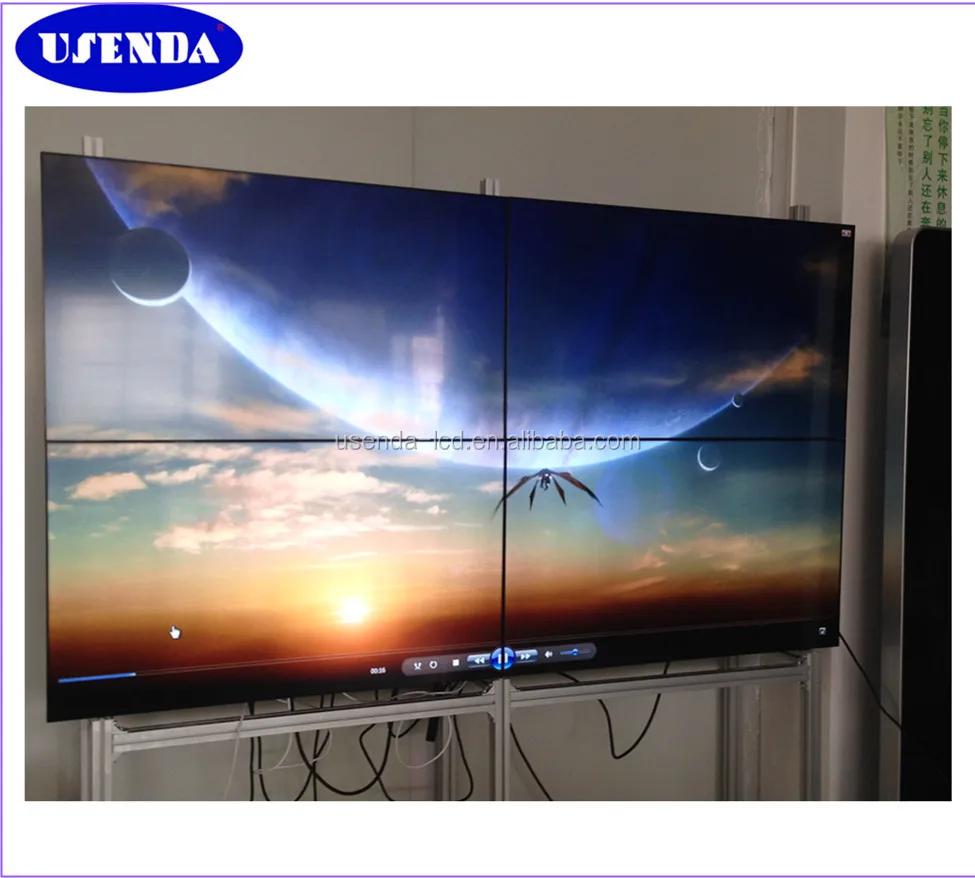

2x2




3x3

Play Mode










Application:

The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to monitoring centre,Airport, Finacial ,Metro,shopping mall,supermarket,Public

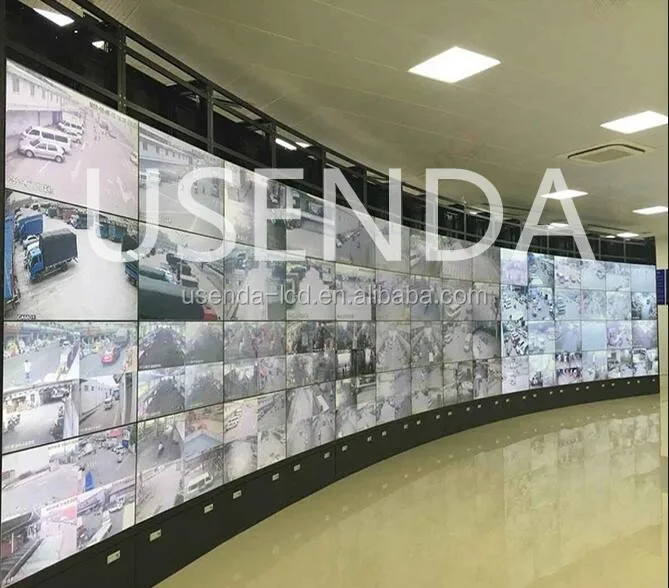

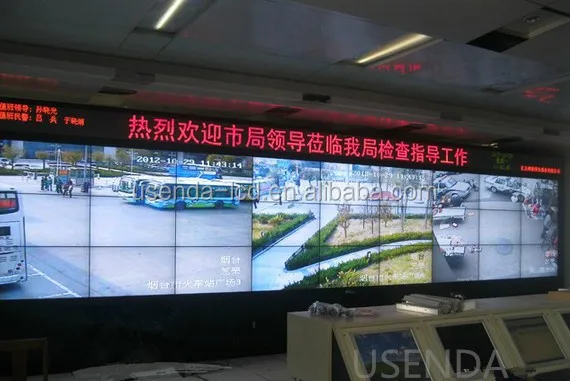

Surveillance

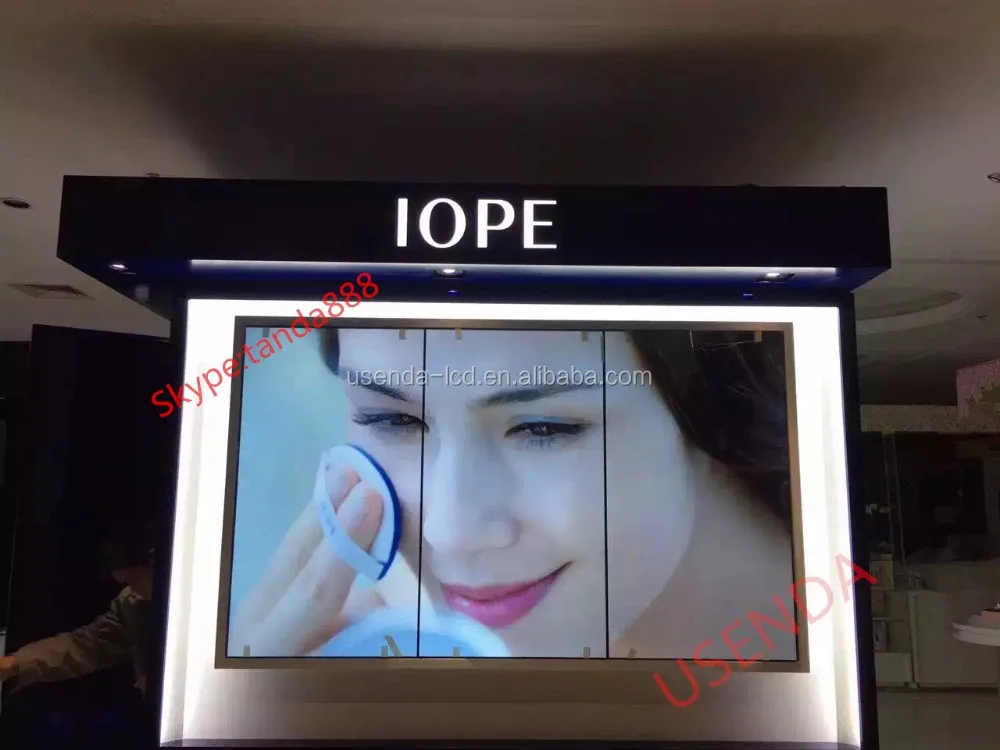

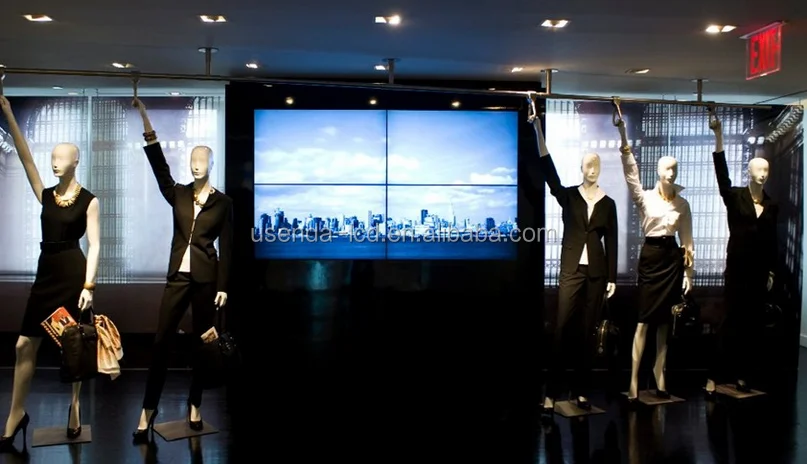

 Advertising





Packing





About Us

Shenzhen Usenda Digital Technology Limited Company, also named Tanda Electronics Limited, is a high-tech enterprise integrating the research and development, production and sales. We are engaged in LCD screens, LCD monitors, advertising players, all-in-one PCs, DID video wall products, etc.
